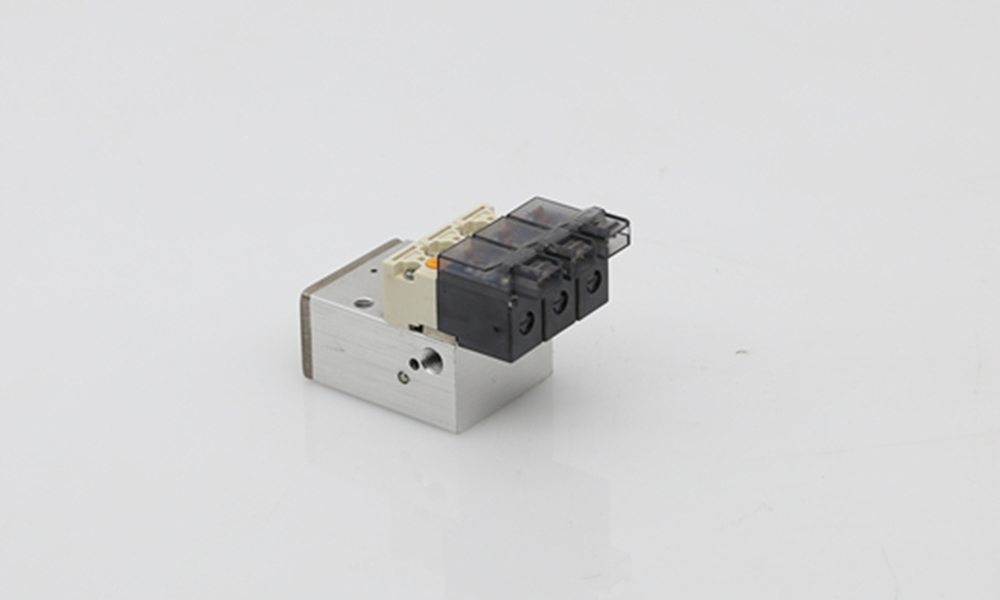

| GENERAL DATA OF T10 VALVES | |
| Valve function | 3/2N.C. |
| 3/2N.O. | |
| 2/2N.C. | |
| 2/2N.O. | |
| Media | Compressed air Inert gases |
| Lubrication | Not necessary |
| Ambient and media temperature | -10℃～+50℃ |
| Working pressure | 0～7bar |
| Orifice size | ￠0.75mm(P port) /￠1.0mm(R port) |
| flow value at 4 bar（direct emptying test） | 18L/min(1→2) ， 28L/min(2→3) |
| COIL DATA OF T10 VALVES | |
| Electrical connection | Vertical type(Ltype) |
| Horizontal type(M type) | |
| Direct line type(G type) | |
| Nominal voltage | AC220V、DC24V、DC12V、DC6V、DC5V、DC3V |
| Voltage tolerance | ±10% |
| Duty cycle | ED100% |
| Insulation class | H |
| Degree of pretection | IP50 |
| Response time | Less than 10ms |
| Lifetime expectancy | More than 30 millon times |
| GENERAL DATA OF T10 VALVES | |
| Valve function | 3/2N.C. |
| 3/2N.O. | |
| 2/2N.C. | |
| 2/2N.O. | |
| Media | Compressed air Inert gases |
| Lubrication | Not necessary |
| Ambient and media temperature | -10℃～+50℃ |
| Working pressure | 0～7bar |
| Orifice size | ￠1.0mm(P port) /￠1.2mm(R port) |
| flow value at 4 bar（direct emptying test） | 28L/min(1→2) ， 35L/min(2→3) |
| COIL DATA OF T10 VALVES | |
| Nominal voltage | Vertical type(Ltype) |
| Horizontal type(M type) | |
| Direct line type(G type) | |
| Nominal voltage | DC24V、DC12V |
| Voltage tolerance | ±10% |
| Duty cycle | ED100% |
| Insulation class | H |
| Degree of pretection | IP50 |
| Response time | Less than 10ms |
| Lifetime expectancy | More than 30 millon times |
