Degree of pretection

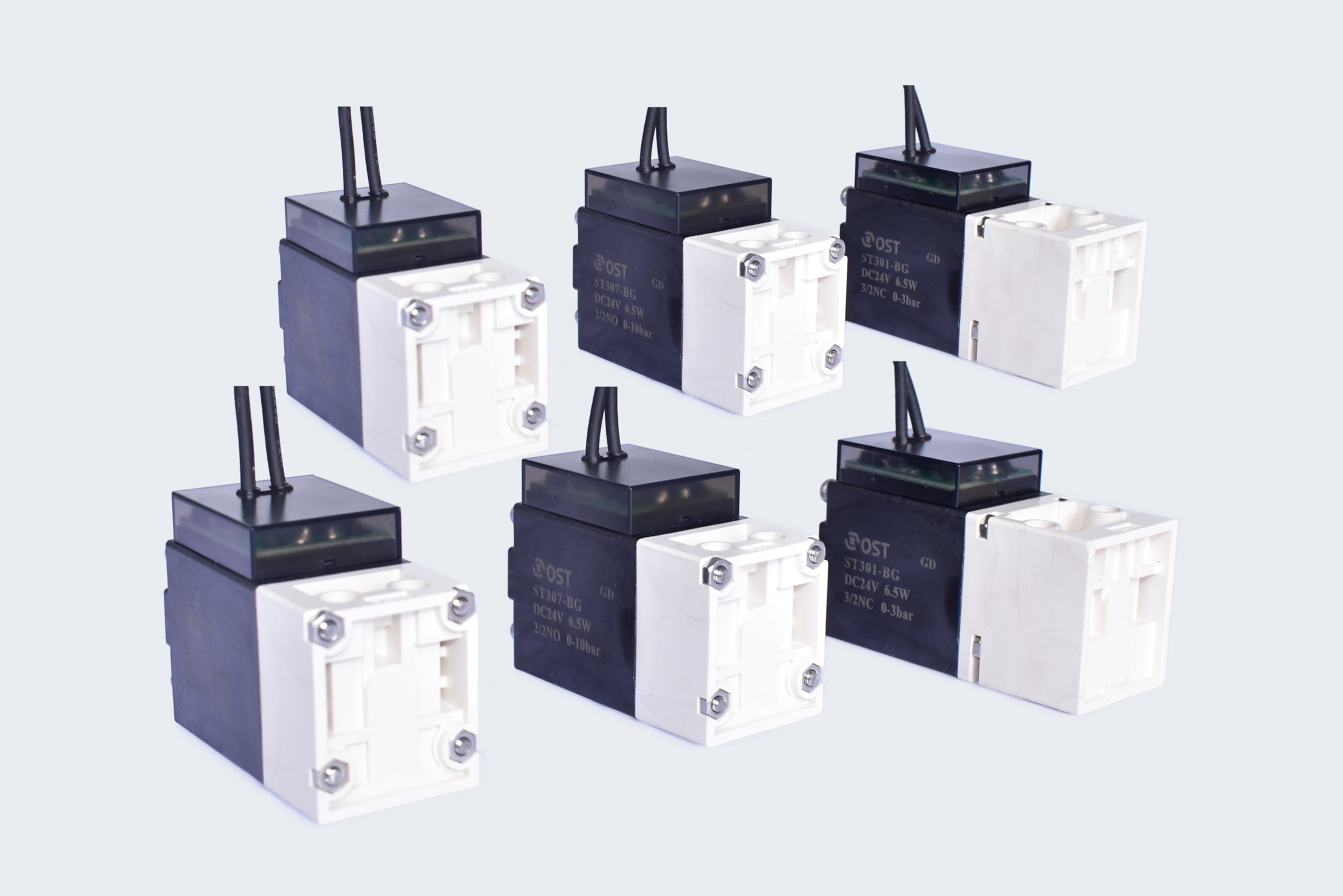

| ST series general parameters | ||||||
| Valve function | 3/2N.C. | |||||
| 3/2N.O. | ||||||
| 2/2N.C. | ||||||
| 2/2N.O. | ||||||
| Media | Compressed air Inert gases | |||||
| Lubrication | Not necessary | |||||
| Ambient and media temperature | -10℃～+50℃ | |||||
| Working pressure | 0～10bar | |||||
| ST series flow parameters | ||||||
| Product specifications | ST15 | ST20 | ST30 | |||
| Orifice size | ￠1.6mm | ￠2.0mm | ￠2.5mm | ￠3.0mm | ￠3.6mm | ￠4.5mm |
| flow value at 1 bar（direct emptying test） | 25L/min | 40L/min | 75L/min | 85L/min | 105L/min | 125L/min |
| ST series coil parameters | ||||||
| Nominal voltage | DC24V、DC12V | |||||
| Voltage tolerance | ±10% | |||||
| Duty cycle | ED100% | |||||
| Insulation class | H | |||||
| IP50 | ||||||
| Max operating frequency | 1Hz | |||||
| Lifetime expectancy | More than 10 millon times | |||||
